57' Tweed Princeton 5F2-A

My take on the late 50’s 5F2-A tweed Princeton circuit.

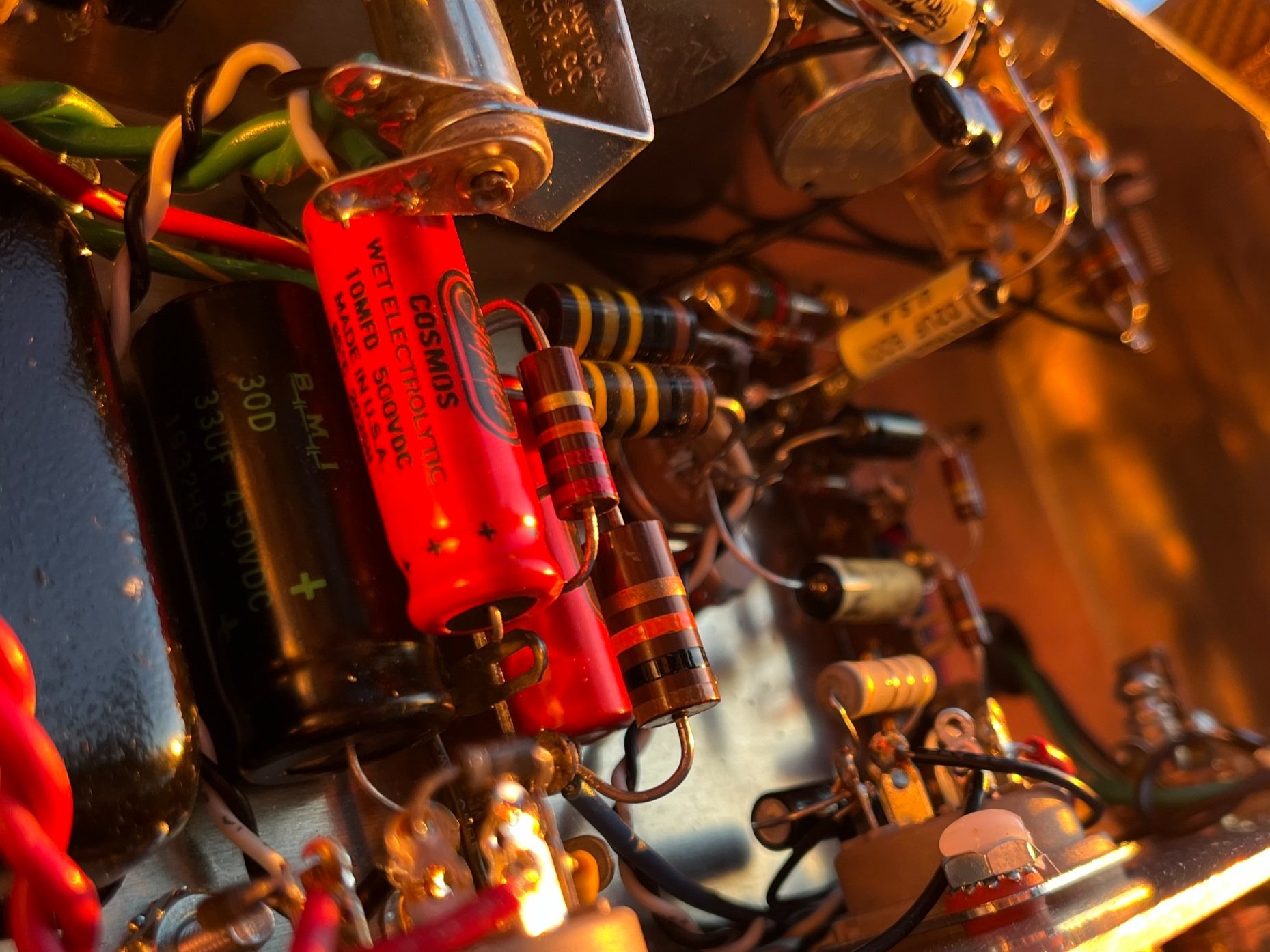

This amplifier utilizes 50’s military point-to-point construction, mechanically isolated tube sockets, and a 14 gauge aluminum chassis. The circuit is loaded in a dovetail jointed pine cabinet in lacquered tweed with a modified Jensen speaker. This amp features vintage Allen Bradley resistors, Jupiter and sprague capacitors, Pacific transformers, and a 1950’s General Electric 5Y3.

CONTROLS

• Preamp Volume

• Tone

FEATURES

• True point-to-point wiring

• True reproduction of the 5F2-A circuit

• Single ended all tube design

• Mechanically isolated tube sockets

• Jupiter film capacitors

• Sprague bypass caps and Jupiter filter caps

• Vintage Allen Bradley carbon composition resistors

• Pacific transformers

• 1×8” modified Jensen speaker

• Koa wood control panel

• 14 gauge heavy duty aluminum chassis

• 4 ohm speaker output

TUBES

• 12AX7 preamp

• 6V6 power

• 1950’s mil spec General Electric 5Y3 rectifier
